Original Sulab BK200 Elevator Transformer Controller with 400V to 110V/8V Conversion 200VA Power Capacity and 1.6A/3A Output
-
강조하다
400V to 110V/8V Elevator Transformer
,200VA Power Capacity BK200 Controller
,1.6A/3A Output TDB-200-34 Transformer
-
상표설 라브
-
설명변신 로봇
-
모델BK200 ((TDB-200-34)
-
모크1pc
-
운송TNT, UPS, DHL, FedEx, Air, Sea
-
패키지상자, 목재 케이스, 팔레트 등
-
배달 시간일반적으로 지불 후 2-3 일
-
보증1 년
-
지불 방법회사 은행, Western Union, Alibaba, PayPal 등
-
브랜드 이름Sulab
-
모델 번호BK200 ((TDB-200-34)
-
최소 주문 수량1
-
배달 시간근무일 2-3 일
-
지불 조건T/T, Western Union, Moneygram

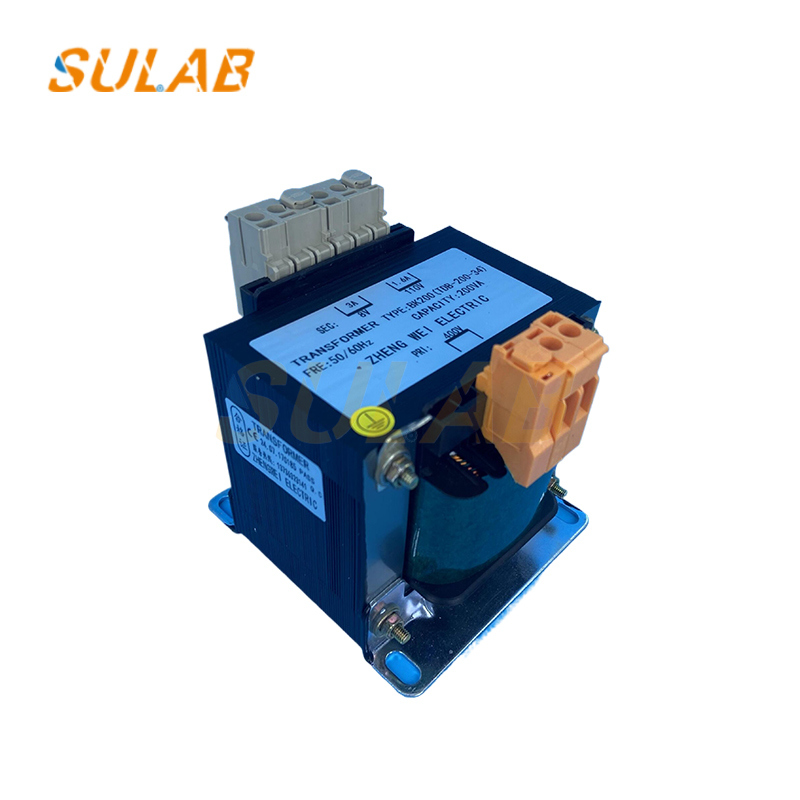

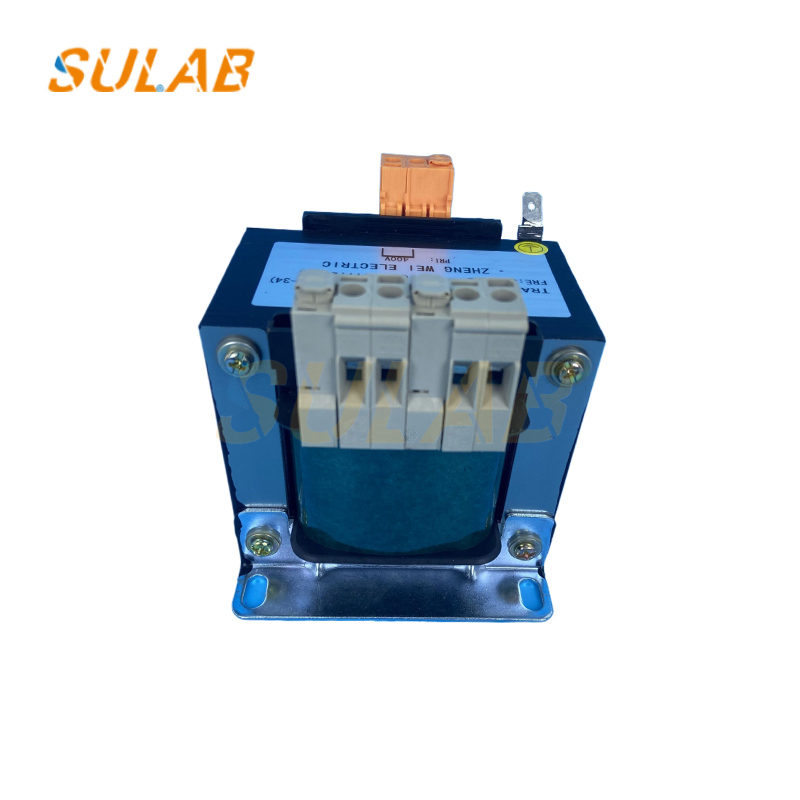

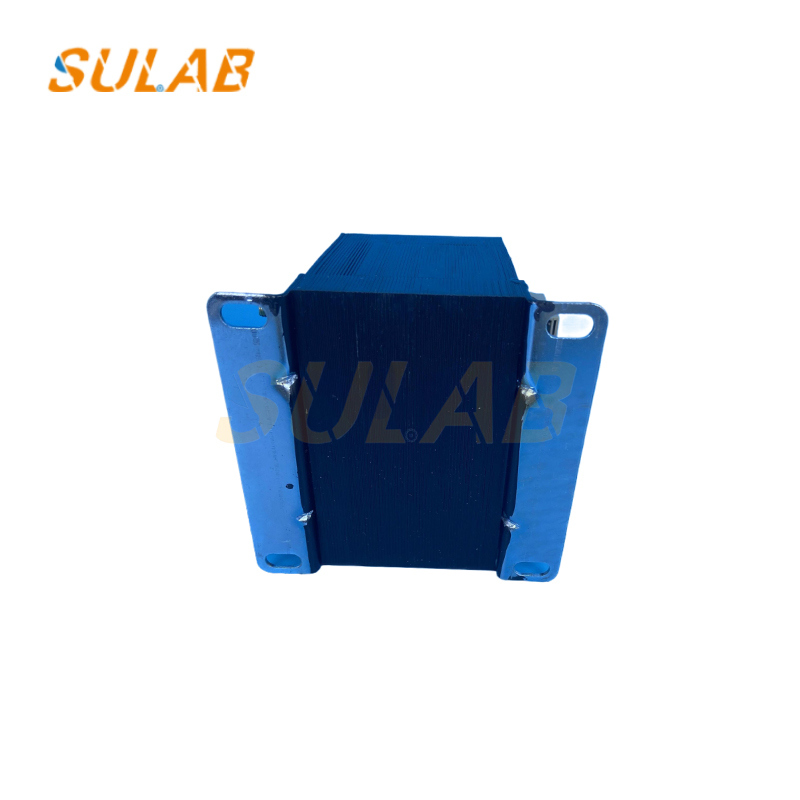

Original Sulab BK200 Elevator Transformer Controller with 400V to 110V/8V Conversion 200VA Power Capacity and 1.6A/3A Output
Brand New Original BK200 Elevator Transformer BK200(TDB-200-34) Controller
Elevator Parts Transformer BK200(TDB-200-34) Controller, Brand New And Original.
This is a multi-output transformer designed to step down a high-voltage AC input into two different low-voltage AC outputs to power various components within the elevator's electrical system.
Key Specifications
- Voltage Conversion: Converts a 400V AC input into two separate outputs: 110V AC and 8V AC.
- Power Capacity: Total rated power of 200VA.
- Current Output: Maximum of 1.6A on the 110V output and 3A on the 8V output.
- Frequency: Compatible with both 50Hz and 60Hz power frequencies.
| Brand | Sulab |
|---|---|
| Description | Transformer |
| Model | BK200(TDB-200-34) |
| MOQ | 1PC |
| Transportion | TNT, UPS, DHL, Fedex, Air, Sea |
| Packages | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, alibaba, Paypal etc |
In elevator systems, the 110V output is typically used for control circuits, signaling, and lighting, while the 8V output powers low-voltage circuits such as call buttons or indicator lights. This design enables one transformer to safely and efficiently power multiple components with different voltage requirements.
